Adding Objects to Your Simulation

This tutorial walks you through adding both primitive shapes and URDF-based objects into your simulation environment using Ark.

✅ Prerequisites

Before proceeding, ensure:

• You have access and permission to modify your project’s configuration files.

• sim_node is correctly set up and running.

📁 Project Structure Overview

Make sure your folder structure resembles this:

text
CopyEdit
project_root/
├── config/
│   ├── global_config.yaml        # Main simulation config
│   ├── objects/                  # Object definitions live here
│   │   └── ball.yaml             # Your new object file
│   └── ...
└── sim_node.py

🧩 Step 1: Link Object in Global Config

Edit global_config.yaml to include your object:

simulator:
  # ... your existing sim config

objects:
  - "objects/ball.yaml"

🌍 Step 2: Enable Ground Truth Publishing

To have Ark automatically publish an object’s true position and orientation, add:

publish_ground_truth: Tru

This works for both primitive and URDF-based objects.

⚙️ Adding a Primitive Object

Ark supports two basic primitives:

• GEOM_BOX

• GEOM_SPHERE

🏀 Example: Ball (Sphere)

File: config/objects/ball.yaml

name: "ball"
config:
  source: "primitive"
  publish_ground_truth: True

  visual:
    shape_type: "GEOM_SPHERE"
    visual_shape:
      radius: 0.05
      rgbaColor: [0.0, 1.0, 0.0, 1.0]  # Green

  collision:
    shape_type: "GEOM_SPHERE"
    collision_shape:
      radius: 0.05

  multi_body:
    baseMass: 0.1  # Dynamic object

  base_position: [-0.5, 0.0, 0.5]
  base_orientation: [0.0, 0.0, 0.0, 1.0]

💡 Explanation

🧱 Example: Floor (Box)

File: config/objects/floor.yaml

yaml
CopyEdit
name: "floor"
config:
  source: "primitive"
  publish_ground_truth: False

  visual:
    shape_type: "GEOM_BOX"
    visual_shape:
      halfExtents: [1, 1, 0.1]
      rgbaColor: [1.0, 0.0, 0.5, 1.0]  # Pink

  collision:
    shape_type: "GEOM_BOX"
    collision_shape:
      halfExtents: [1, 1, 0.1]

  multi_body:
    baseMass: 0  # Static object

  base_position: [0.0, 0.0, 0.0]
  base_orientation: [0.0, 0.0, 0.0, 1.0]

🦾 Adding a URDF Object

You can also load more complex objects from a URDF file.

Example: Power Drill

name: "power_drill"
config:
  source: "urdf"
  urdf_path: "config/objects/power_drill/model.urdf"
  publish_ground_truth: False

  base_position: [-0.5, 0.5, 0.3]
  base_orientation: [0.0, 0.0, 0.0, 1.0]
  global_scaling: 1.5

Key Parameters:

• source: "urdf": Load from a URDF file

• urdf_path: Relative path to the model file

• global_scaling: Optional scaling factor

• base_position / base_orientation: Sets object’s spawn pose

🚀 Running the Simulation

After adding objects to your config, run the simulation. You should see the ball, floor, and any URDF models appear in your simulated world.

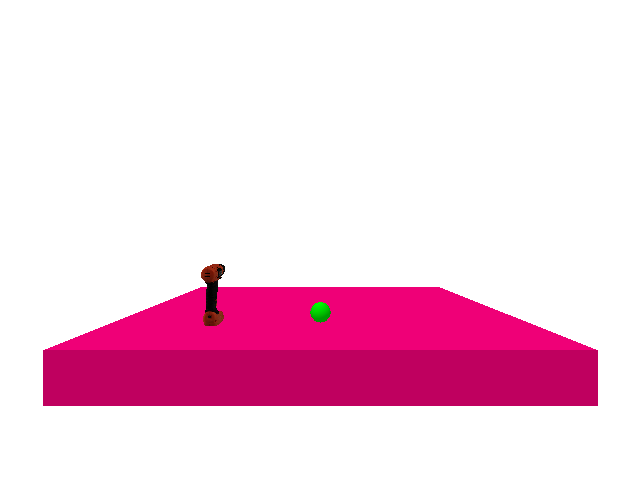

✅ If everything is set up correctly, it should look like this:

Code can be found:
