Setting Up An Environment

In this tutorial, we will learn how to set up a Gym-compatible environment interface to control the Franka Emika Panda robot. This can be changed for multiple robots/different robots/more objects and sensors as well.

Prerequisites

A Franka Emika Panda robot is present and correctly configured in the environment.

An additional object (e.g., a ball) that is actively publishing its ground-truth state to an observation channel.

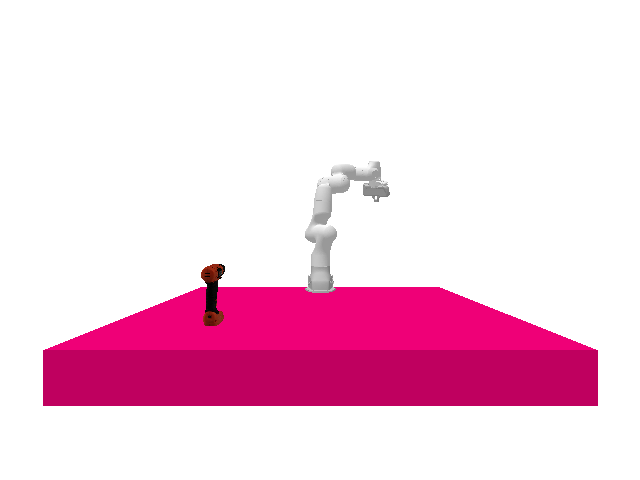

In this example we assume you are running a simulation that has the same set up seen below:

Setting up the Environment

Add a file called franka_env.py in the scripts folder.

This file defines a custom environment FrankaEnv that integrates with the Ark=robotics framework. It is designed to control and observe a Franka Emika Panda robot interacting with a ball object, either in simulation or the real world.

📦 File Structure

from ark.env.ark_env import ArkEnv
from arktypes import joint_group_command_t, joint_state_t, rigid_body_state_t
from arktypes.utils import pack, unpac

ArkEnv: Base class providing simulation and communication utilities.

arktypes: Message types used in action and observation channels.

pack/unpack: Helpers for serializing/deserializing messages to/from LCM.

🧠 Class Overview: `FrankaEnv`

class FrankaEnv(ArkEnv):

This class wraps around ArkEnv and defines an environment tailored for the Franka robot. It is compliant with standard RL environment conventions.

Key Elements:

In this case we will define our action and observation channels as below

Action Channel:
Franka/joint_group_command/sim → joint_group_command_t
Sends desired joint positions.

Observation Channels:
- Franka/joint_states/sim → joint_state_t
  Receives joint angles from Franka.
- ball/ground_truth/sim → rigid_body_state_t
  Receives position and orientation of the ball.

🔧 Constructor


def __init__(self, config=None, sim=True)

Initializes the environment.

config: path or dict to the system configuration YAML.

sim: whether to run in simulation or real-world mode.


    environment_name = "Franka_Enviroment"

Sets the internal name of the environment (used for naming the Envrioment and Gym node).

    action_space = {
        'Franka/joint_group_command/sim': joint_group_command_t,
    }

Defines the action channel and its Ark message type.

Sends joint commands to Franka.


    observation_space = {
        'Franka/joint_states/sim': joint_state_t,
        'ball/ground_truth/sim': rigid_body_state_t,
    }

Defines two observation channels:
- Franka/joint_states/sim: receives robot joint angles.
- ball/ground_truth/sim: receives the pose of a ball in the scene.

    super().__init__(
        environment_name=environment_name,
        action_channels=action_space,
        observation_channels=observation_space,
        global_config=config,
        sim=sim
    )

Calls the parent ArkEnv constructor, which:
- Loads the config,
- Sets up communication,
- Creates action and observation spaces

🎮 Action Packing

python
CopyEdit
def action_packing(self, action):

Converts a high-level action (list of joint angles) into a packed message to be sent over Ark Channels.

The input to these functions is what ever you pass into the step function when you call it from the gym.


    return {
        'Franka/joint_group_command/sim': pack.joint_group_command(
            name="all",
            cmd=action,
        )
    }

Uses joint_group_command helper to create a packed message.

This function should return a dictionary where the keys should match the action channel name, and the value is the message.

👁️ Observation Unpacking

def observation_unpacking(self, observation):

This function will return a dictionary with the keys being the observation channels and the values being the latest observations on these channels.

    ball_position = unpack.unpack_rigid_body_state(
        observation['ball/ground_truth/sim']
    )

Decodes the position and orientation of the ball.


    joint_states = unpack.unpack_joint_state(
        observation['Franka/joint_states/sim']

Decodes the joint angles from the robot.


    return [ball_position, joint_states]

In this case we return a list of the two decoded observations as a list

You can later process this into a vector or dictionary depending on use case.

🏁 Termination & Truncation Logic

def terminated_truncated_info(self, state, action, next_state):

Currently we will leave this blank but is a placeholder logic to decide whether the episode should terminate or truncate, for more advanced RL/IL examples Currently returns:

(False, False, None)

Can be extended based on task goals (e.g., if ball is reached or time limit exceeded).

🎯 Reward Function

def reward(self, state, action, next_state):

This can also be customised to reflect task-specific rewards (e.g., distance between gripper and ball).

🔄 Environment Reset

def reset_objects(self):

Called during env.reset(). Responsible for putting all objects back into their initial state.

You can call reset component function to reset the objects in the simulation.

  self.reset_component("Franka")

Resets the Franka robot using configuration or user-defined values.

Optional keyword arguments if resetting a robot is:

Base Position

Base Orientation

Initial Configuration

If left blank it will default to the values given in the config file.

self.reset_component("ball", base_position=[-0.5, 1, 0.5])

Likewise we can reset the ball to any position of our choosing.

Optional keyword arguments if resetting an object is:

Base Position

Base Orientation
